Capacity: 70,000 lbs - 120,000 lbs

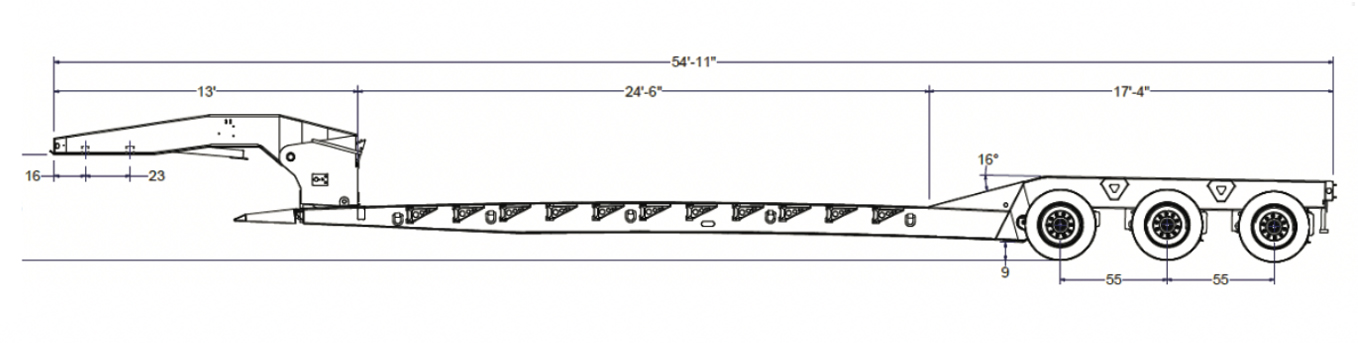

Standard Deck Length: 24' - 6"
Standard Rear Deck Length: 17' - 4"
Standard Neck Length: 13'
Standard Deck Width: 102"
Tapered 4-beam main frame construction
High-tensile steel flanges (100,000 psi minimum yield strength)
8" I-beam cross members 24" centers

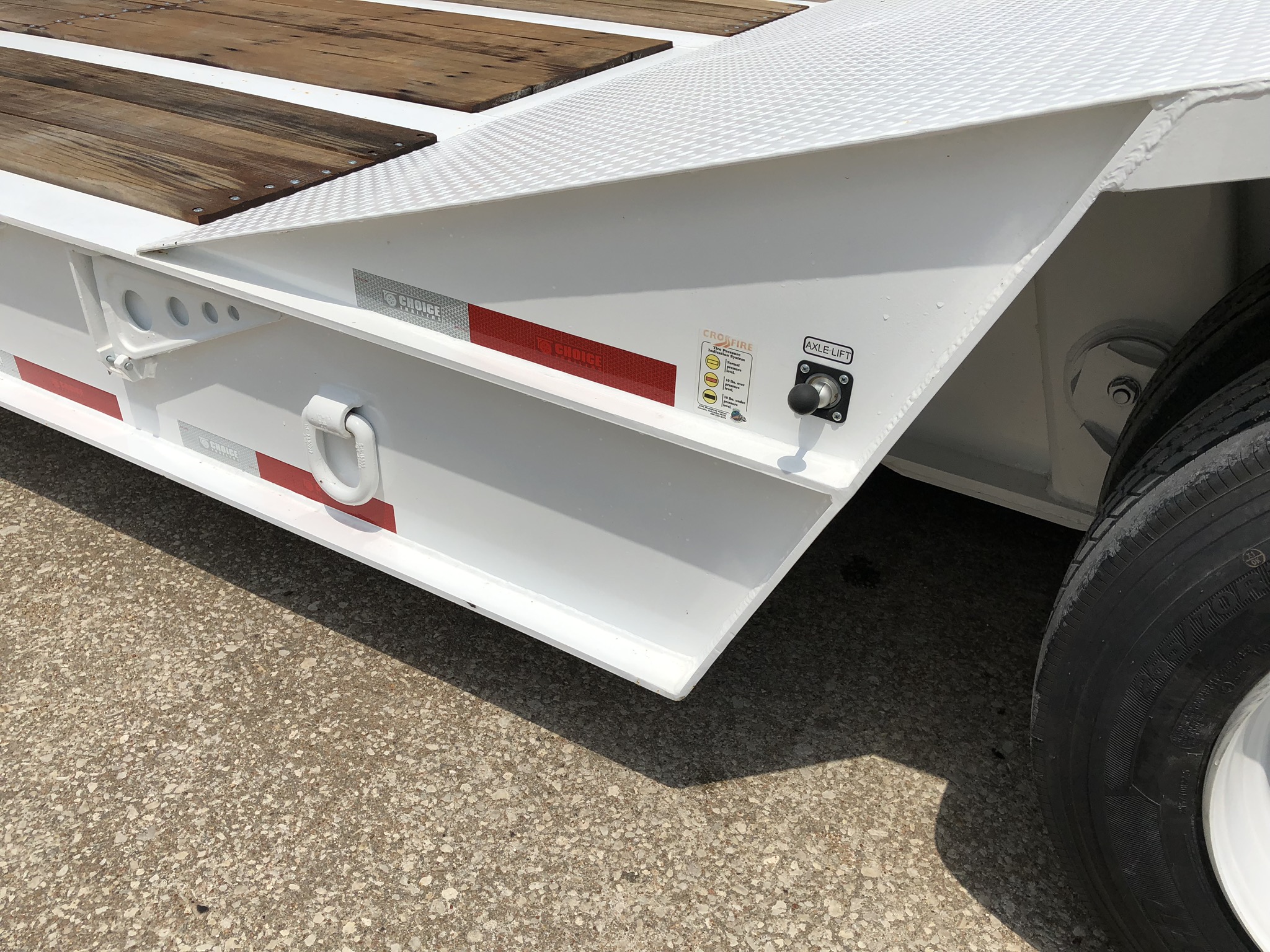

31" double-hinged front-loading ramps with 9" load angle
18 rear deck load angle
Pull-out, heavy-duty outrigger, 1 per side
Swing-out style outriggers, 11 per side
D-rings, 5 per side

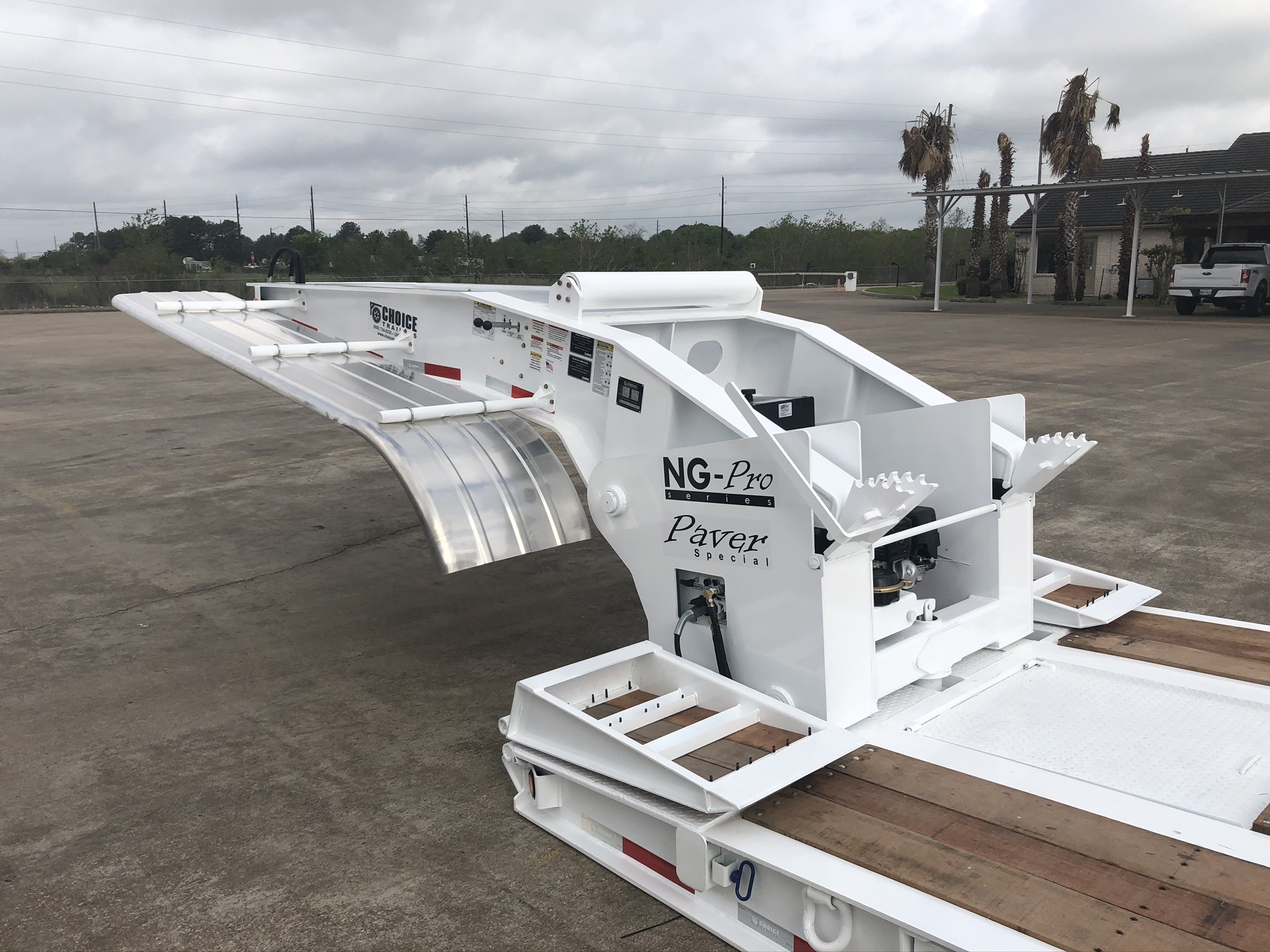

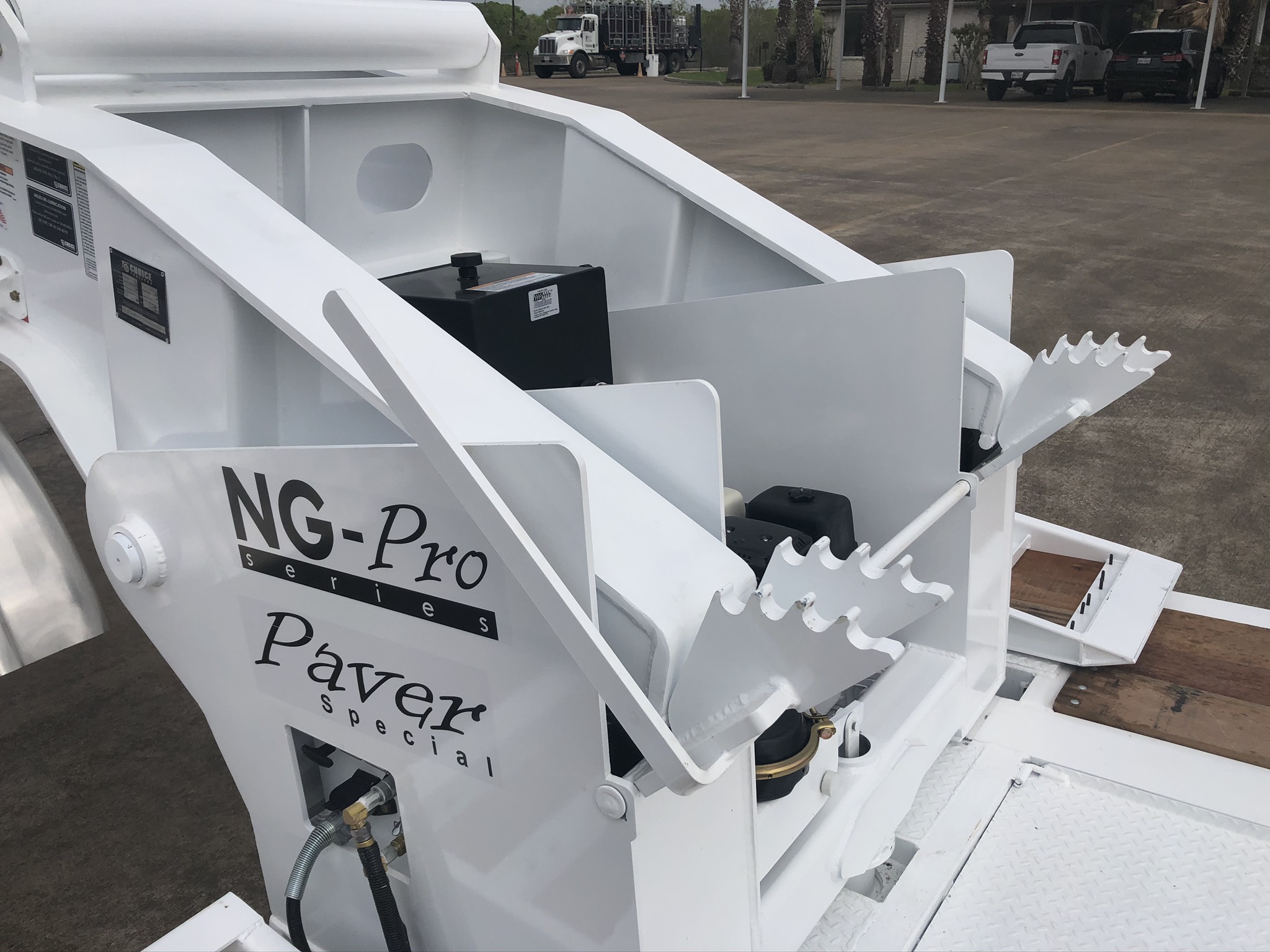

Arched, non-ground bearing gooseneck (4 adjustable positions)
Hydraulic gooseneck support arm
1 3/4" Apitong trailer decking
Expanded metal tool tray
3,000 psi (10 gpm) operating pressure
2-part polyurethane primer and paint
25,000 lbs air ride suspension
25,000 lbs nominal axles
Adjustable air ride
55" axle spacing
8.325" x 22.5 10-hole pilot mount steel disc wheels
255/70R22.5, 16-ply radial tires
D.O.T. approved sealed 12v electrical and lighting system
LED lights
3 tail lights per side, mid-turn signales
Self-contained 13hp Honda power
Flip axle
Lift axle
Flip neck extension
Load-bearing wheel covers
Dual kingpin settings
Removable outriggers
Front fenders
Tire inflation system
Aluminum wheels
Aluminum center ramp
Disc brakes
Steering axles Covered tool box
Sstrobe lights
Custom topcoat color
Flag holders
