Committed to quality customization and excellence in every step of the manufacturing process.
Capacity: 50,000 lbs - 80,000 lbs

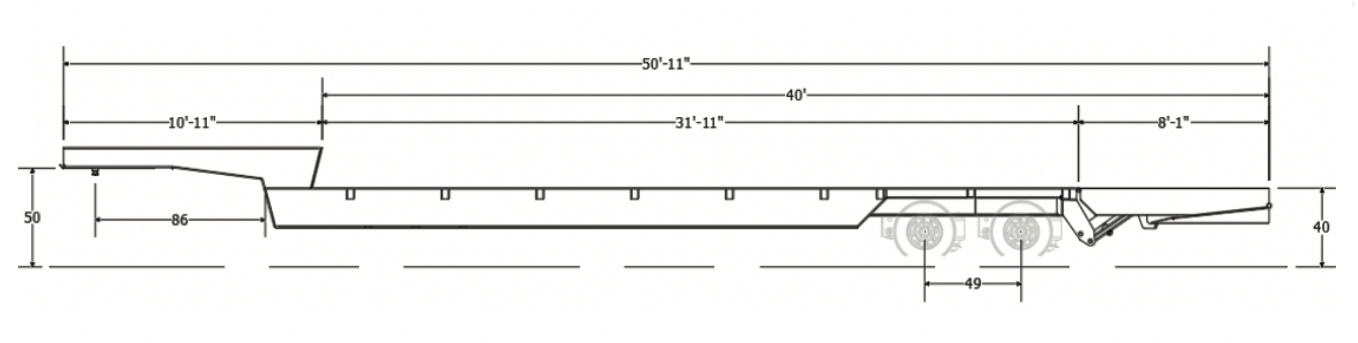

Standard Deck Length: 40'
Standard Loading Angle: 12°
Standard Neck Length: 10' - 11"
Standard Deck Width: 102"
High-tensile steel flanges (100,000 psi minimum yield strength)
10" and 6" I-beam cross members, 24" and 12" centers
Hydraulic folding tail with 12 load angle
Hydraulically-actuated tail lock
External stake pockets, 48" centers
D-rings, 11 per side
Covered tool boxes on upper deck
1 3/4" Apitong trailer decking
3,000 psi (10 gpm) operating pressue
2-part polyurethane primer and paing
25,000 lbs air ride suspension
25,000 lbs nominal axles
Adjustable air ride
49" axle spacing
8.325" x 22.5 10-hole pilot mount steel disc wheels
255/70R22.5 , 16-ply radial tires
D.O.T. approved, sealed 12v electrical and lighting system
LED lights
3 tail lights per side, mid-turn signals
Self-contained, 13hp Honda power
Recessed upper deck ramp
Lift axle
12K, 20K, and 30K hydraulic winch
Dual kingpin settings
High capacity extendable, swing-out outriggers
Dual side hydraulic controls
Full steel plate floor deck
Load-bearing steel wheel covers
Tire inflation system
Aluminum wheels
Disc brakes
Steering axles
Additional tool box
Strobe lights
Custom topcoat color
Flag holders
