Committed to quality customization and excellence in every step of the manufacturing process.
Capacity: 50,000 lbs - 70,000 lbs
Standard Deck Length: 28'
Standard Beavertail: 46"
Standard Deck Width: 102"
Note: Custom Dimensions Available
Length 37'Width
102"Main Deck Length
24' Flat Dec
kMain Deck Height 34"
Flat BodyBulkhead 8" Steel
Full WidthFloor Apitong Outside - DSS Pine Center
D-Rings Eight (8) Pair

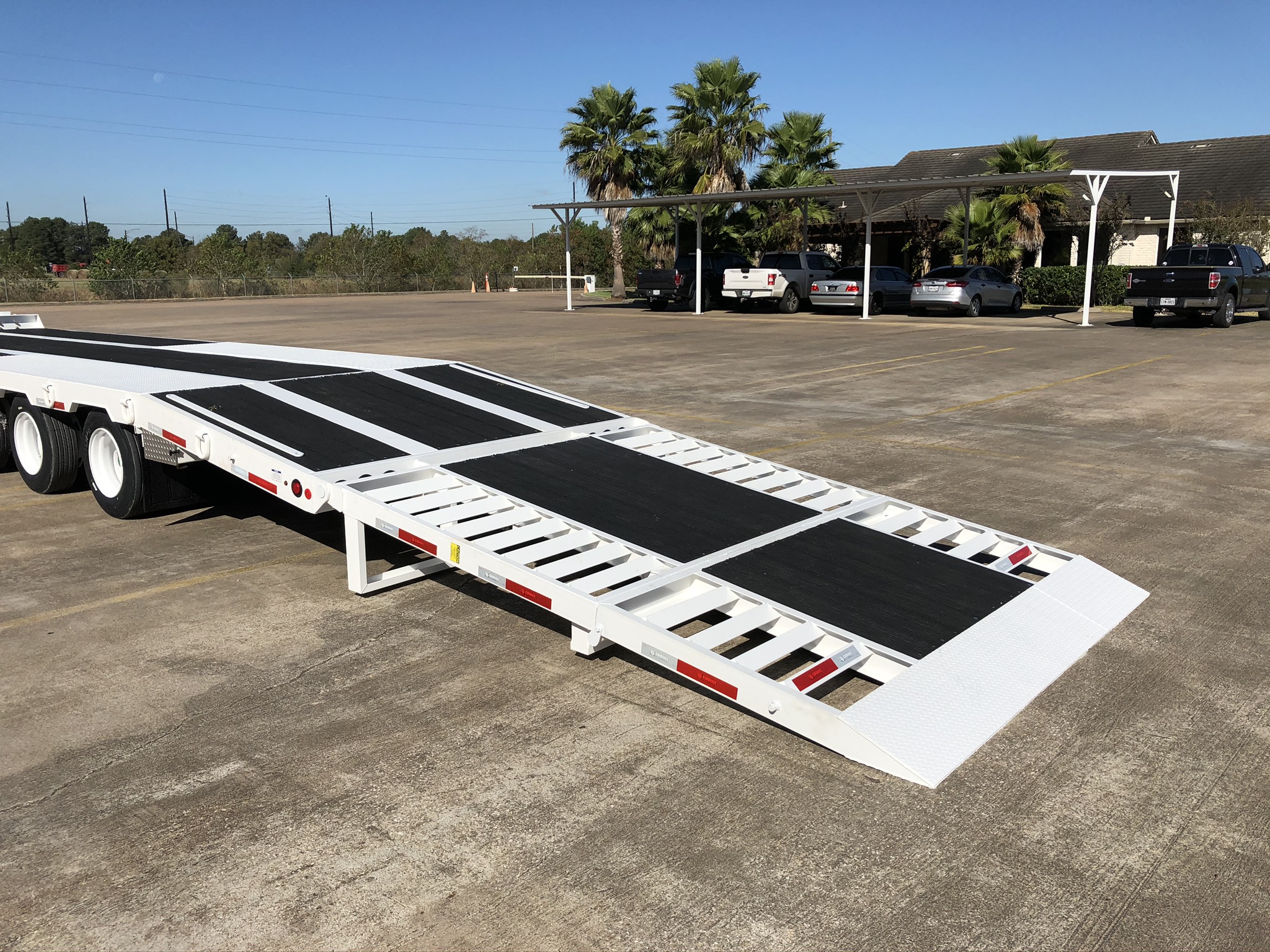

Beavertail 6' Long, 8 Degree Load Angle

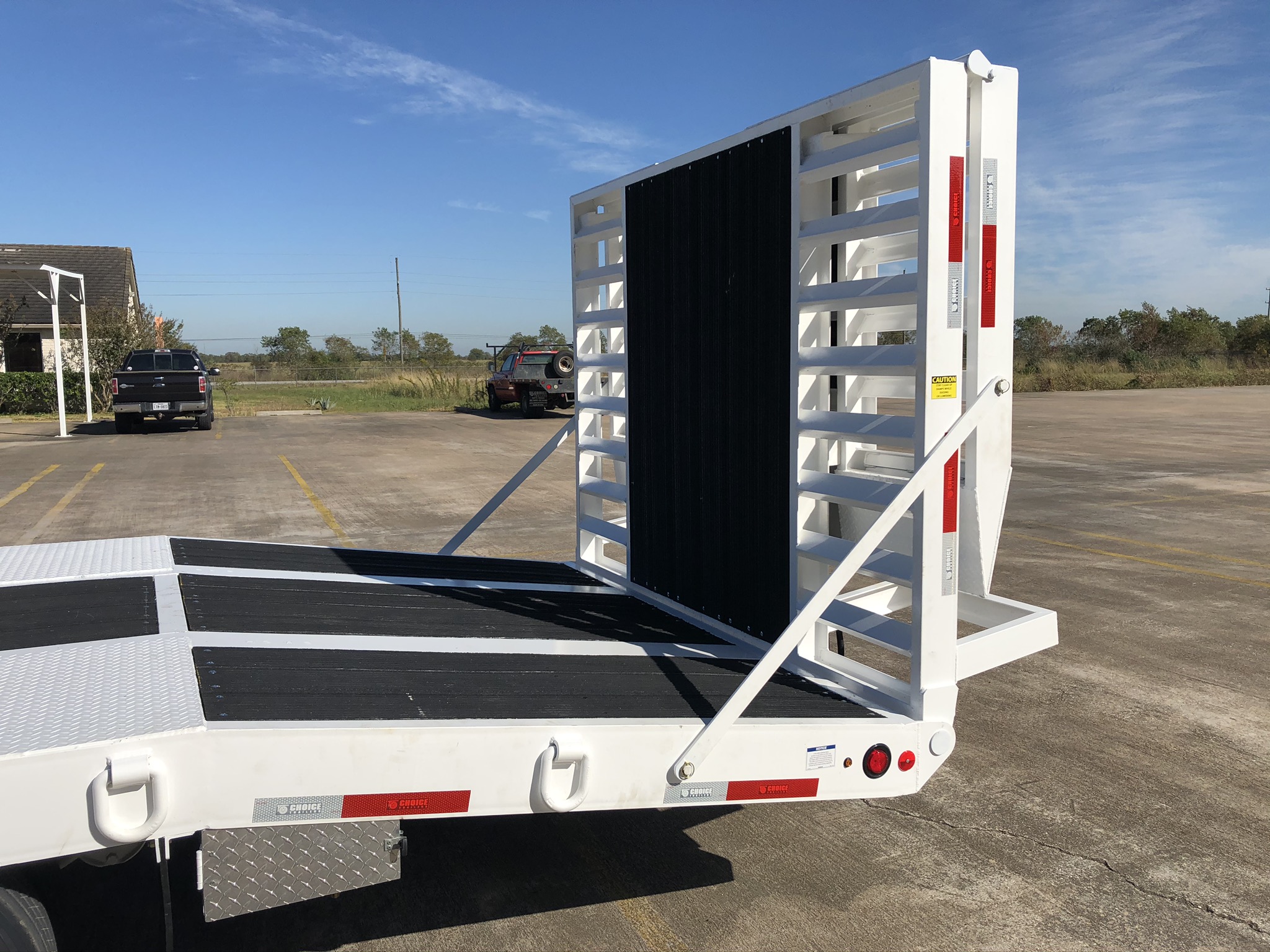

Ramps, 7' Long, 36" Wide Wood Filled
Toolbox Drawbar Storage Area, Lockable
Rear Lights (2) Stop/Tail, (3) Clearance
Under Frame Pintle Hook Steel, Adjustable from 20.5" to 34"
Landing Gear Two Speed
Paint Black
Weight Ratings 25 Ton
4S/3M ABSSpring Brakes on All Axles
Two (2) 1/2" Safety Chains, Safety Hook with Latch
Suspension# of Axles 3
Suspension Type Spring Ride
Suspension Brand Hutchens H-9700 3-Leaf
Lift Axle Cush CLC-25-005 Air Ride, 25,000 Lb.
Tire Size 215/75R17.5
Wheels Steel
